High Resolution X-ray

What is High Resolution X-ray?

High Resolution X-ray cameras provide exceptional spatial resolution for demanding x-ray imaging applications. They utilize special scintillators designed to optimize resolution and can be coupled to cooled sCMOS cameras to provide best-in-class sensitivity. The cameras can be optimized for moderate to hard x-ray energies.

Benefits of High Resolution X-ray Cameras

Explore our range below and contact us to discuss your exact requirements.

Feature Highlights

Application Optimized Configurations

A choice of scintillators and entrance window materials to optimize the camera for specific experimental requirements and environmental conditions.

Multiple Configurations

Each camera type can be configured with various fields of view and pixel sizes specific to customer requirements.

IDEAL FOR

X-ray source characterization and alignment

FDS Detector

High resolution, high speed sCMOS x-ray imaging

The detector offers a range of sCMOS sensors from 1.77MP up to 7.1MP and with active areas between 8.75mm x 6.6mm and 14.5mm x 9.9mm. This can be increased by the use of customized fiber optics taper when needed.

Features

Frame rates up to 37 fps full resolution
GADOX and columnar CsI for optimal resolution over a wide range of energies
Native spatial resolution to 18 microns with 4.5 micron pixels

IDEAL FOR

X-ray radiography
Coherent diffraction imaging

X-ray sCMOS 4MP Detector

High sensitivity x-ray imaging

The sCMOS 4MP Detector offers up to 67mm x 67mm active area and 4 megapixel resolution. One of two custom scintillators is deposited onto the camera to optimize performance for the customers energy range.

Features

11 micron pixel provides superior sensitivity
Cooled sensor provide low dark current and excellent image quality
Quantitative 16-bit digitization

IDEAL FOR

Micro-CT

X-ray sCMOS 16MP Detector (Cooled)

High resolution, high sensitivity x-ray camera

Photonic Science high resolution x-ray imaging detector incorporates the latest, state-of-the-art sCMOS technology providing ultra-low read noise, making it the ideal solution for even the most demanding applications.

Features

9 micron pixel is optimal size for resolution and sensitivity
5 GigE variant provides 20 fps full resolution
High dynamic range mode

X-ray sCMOS 16MP Detector (Lightly Cooled)

IDEAL FOR

Micro-CT
PCB inspection
Radiography

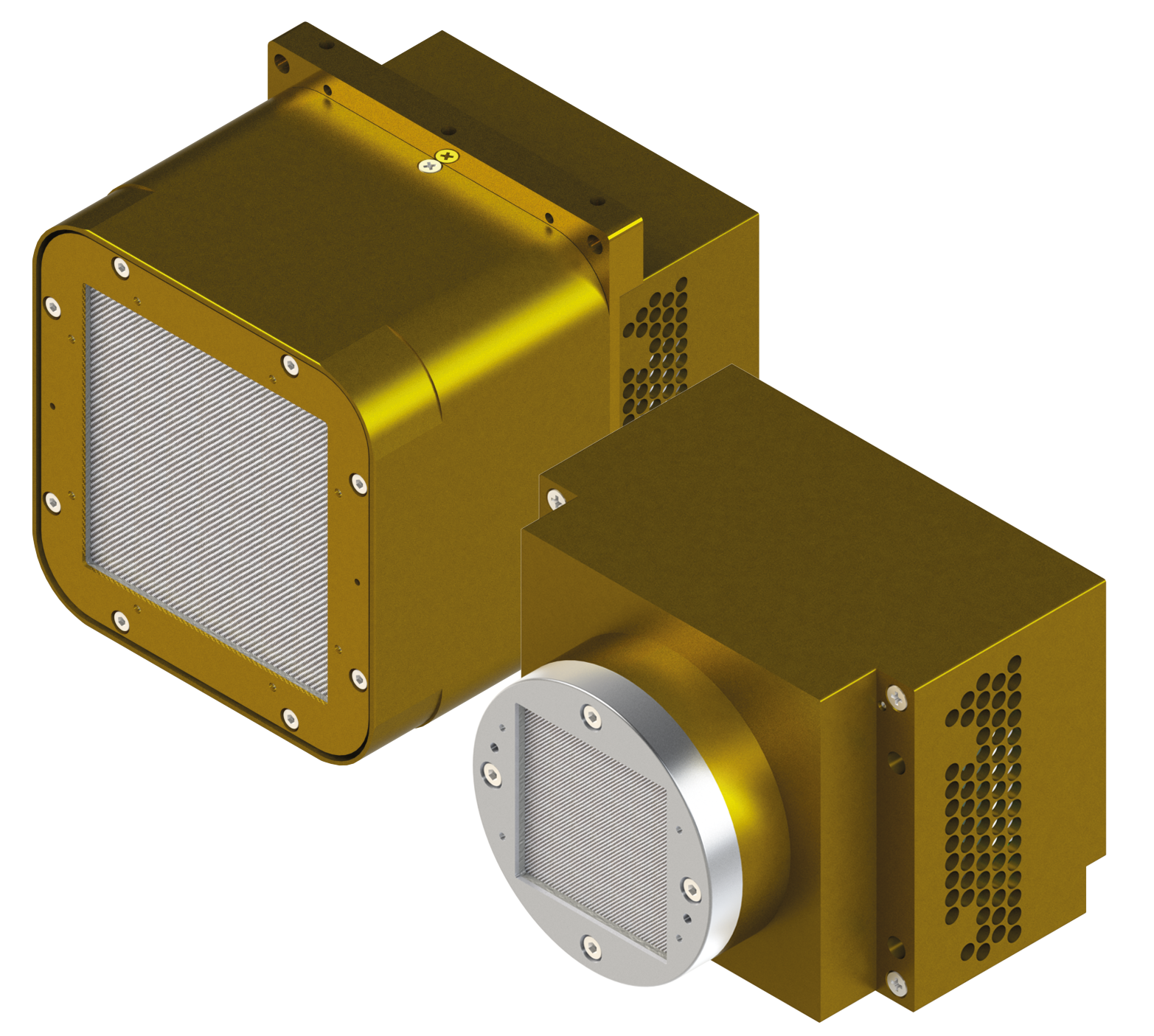

X-ray sCMOS 16MP Detector (Lightly Cooled)

Lightly cooled compact high resolution x-ray imaging

Features

16MP sCMOS sensor with 4096 × 4096 resolution
Compact lightly cooled design with brass shielding
Ultra-low read noise for high sensitivity imaging

Why Choose Tibidabo Scientific Industries USA

Trusted by government agencies, labs, and OEMs globally

Supported by experts with deep imaging and system knowledge

Enhanced by technical customization, integration support, and training

Talk to an Expert

Contact Us

To discuss requirements or customization, request a quote, or schedule a product demo, fill out the contact form with your information.

A member of our team will get back to you promptly.
