X-ray Systems

What is an X-ray System?

An x-ray system contains all components required to provide a complete x-ray image.

X-ray is used for a wide variety of applications, with systems often tailored for particular industries. The Photonic Science Laue System is used to rapidly determine the orientation of single crystals, while their 2D Micro Radiography System provides x-ray transmission images with exceptional resolution. X-ray fluorescence technology in the XRF-line system from LLA provides elemental analysis of a metal material stream in real-time.

Benefits of X-ray Systems

We provide detailed setup instructions with optional in-person installation and training. All our x-ray systems come with easy-to-use software resulting in a final data set according to your application. Explore our range below and contact us to discuss your exact requirements.

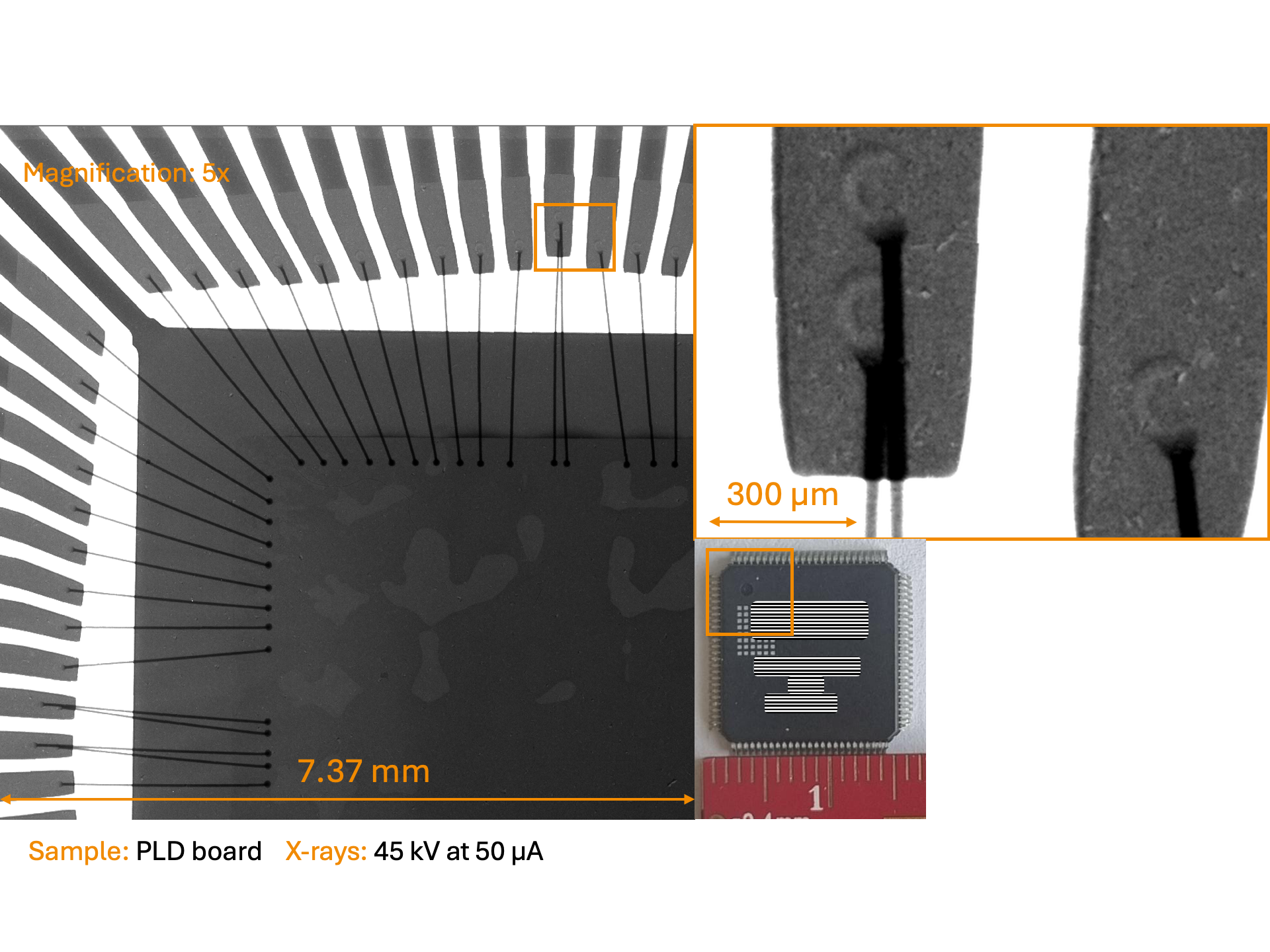

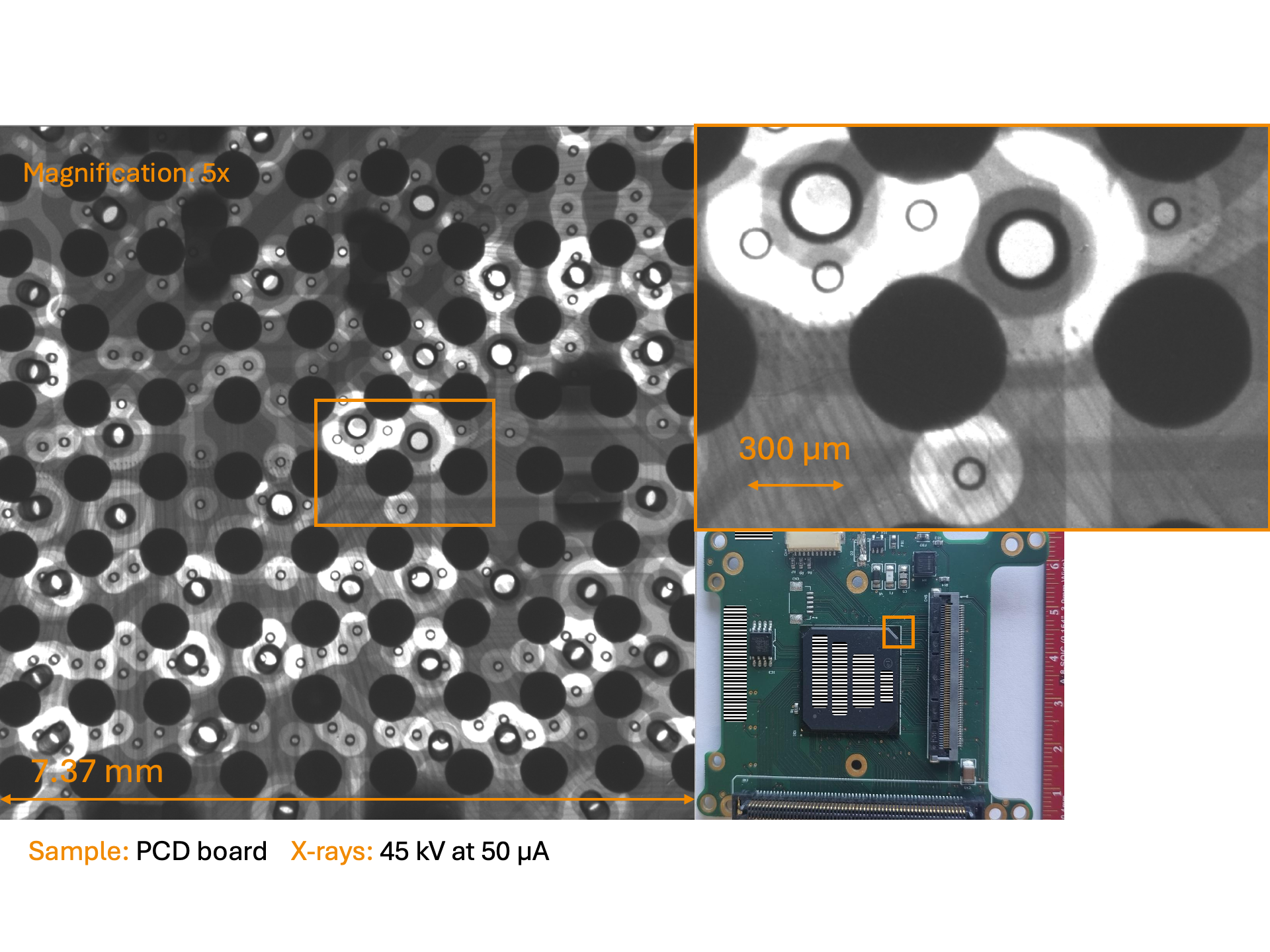

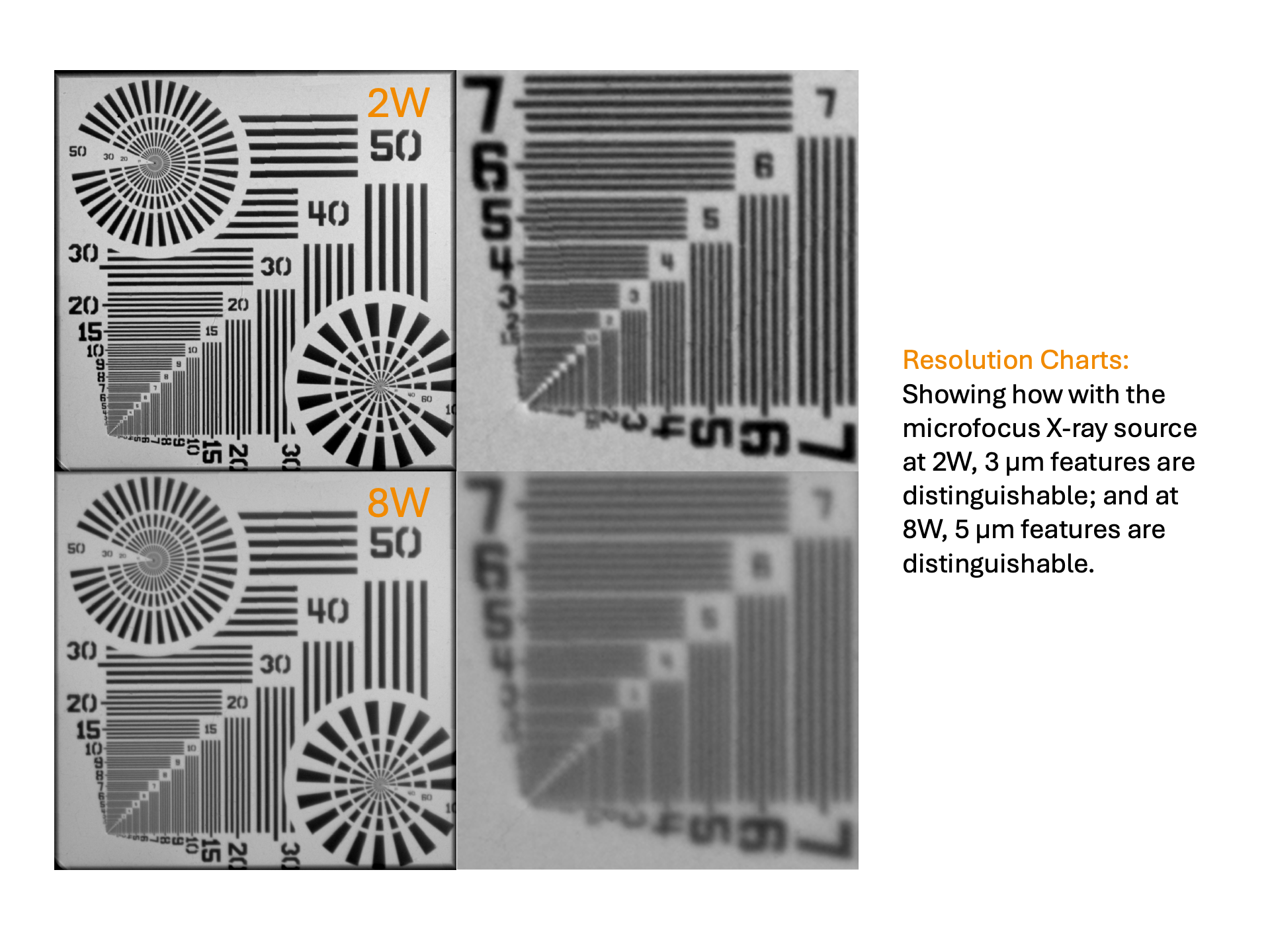

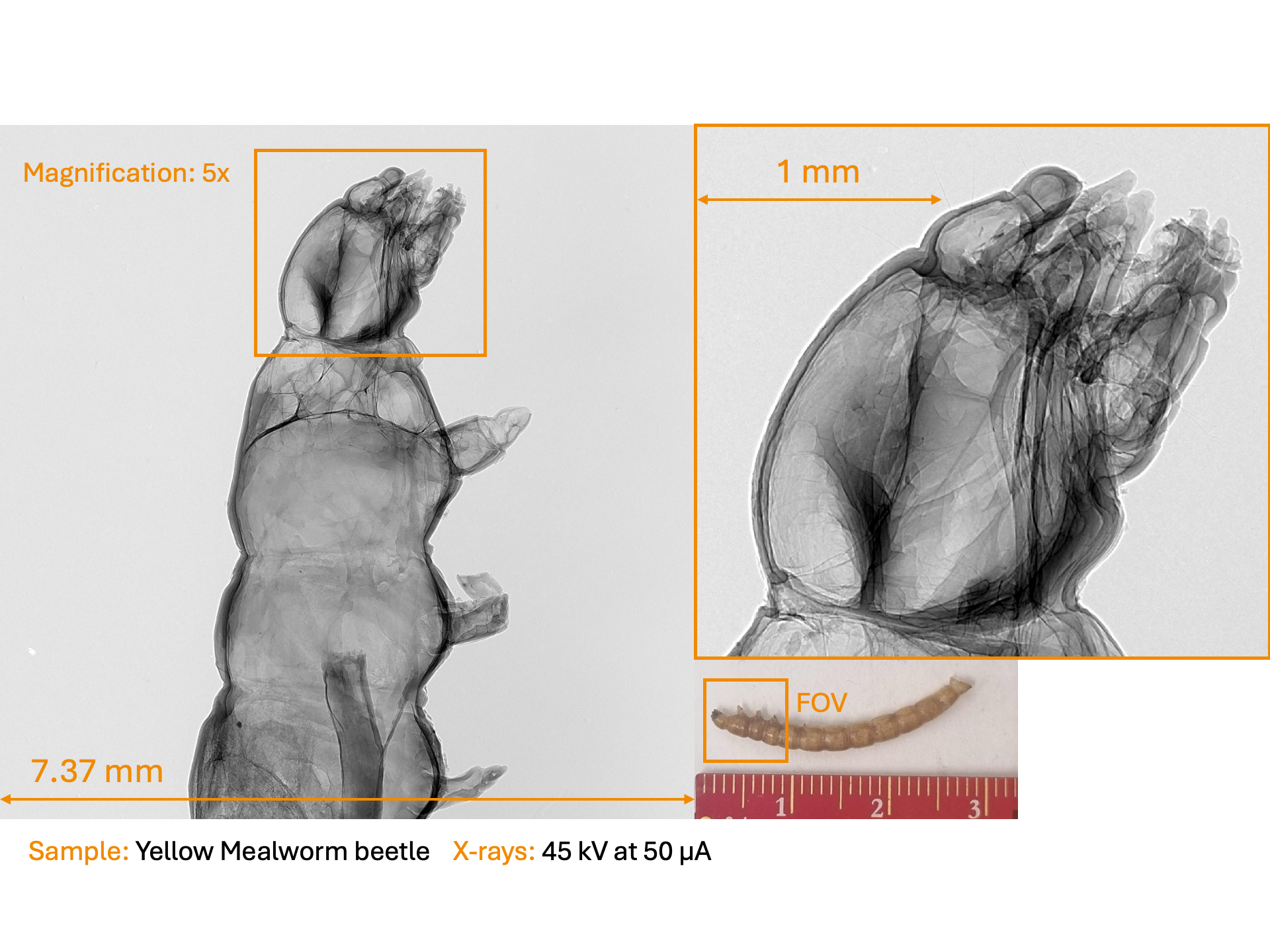

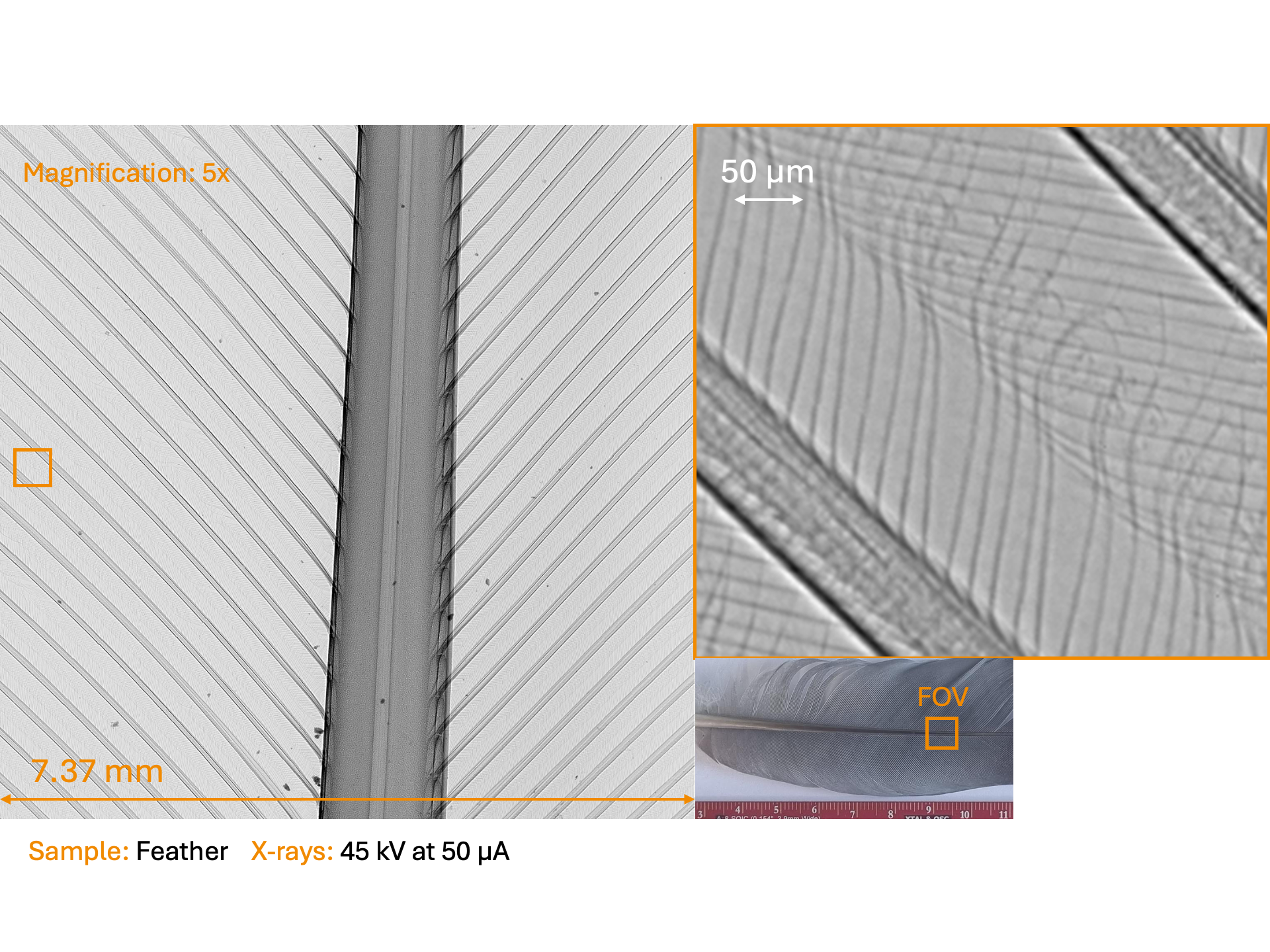

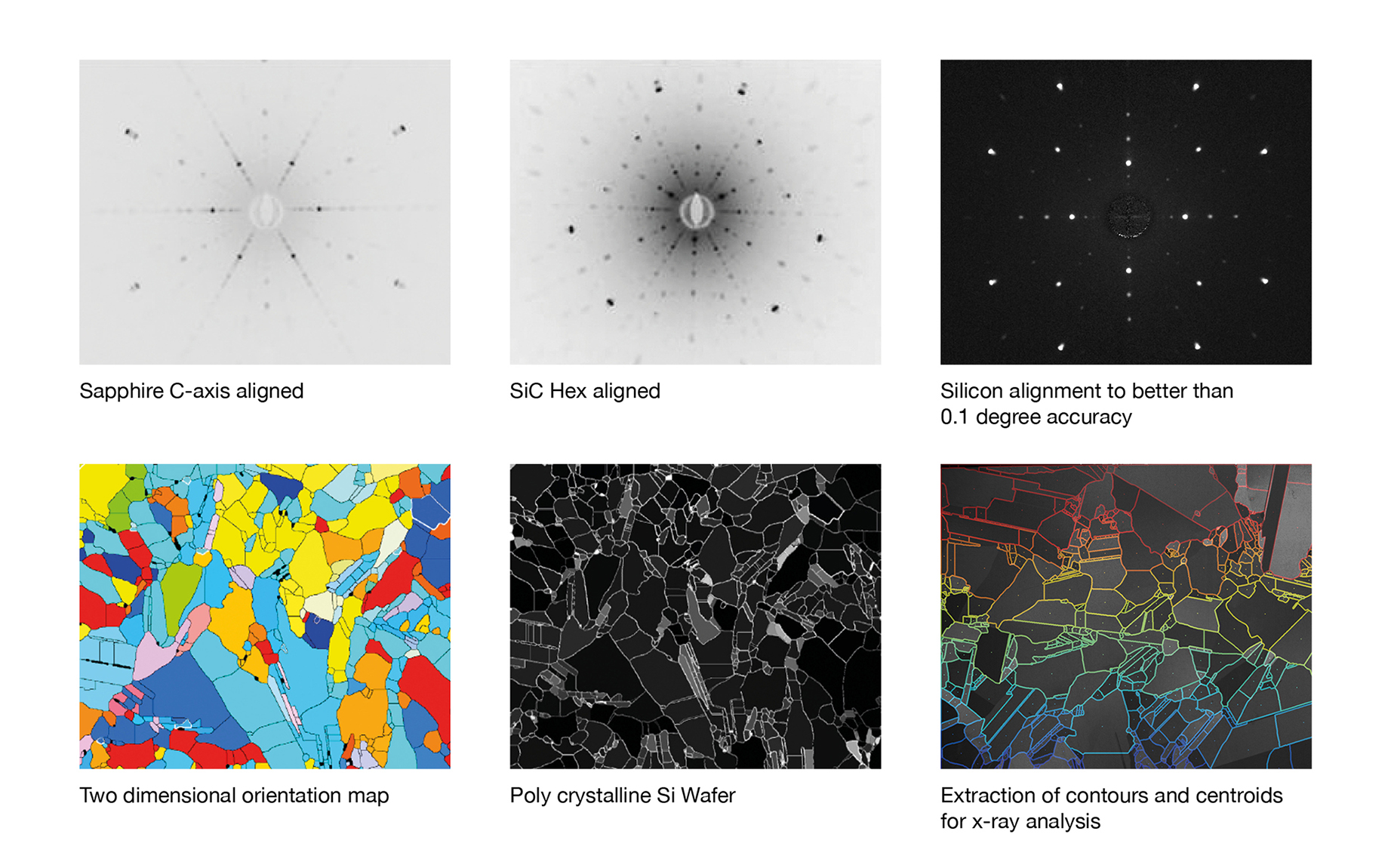

X-ray Image Gallery

IDEAL FOR

Crystal cutting
Crystal orientation
Beamline pre-characterization
CVD diamond growth
Single crystal nickel super alloy inspection

Laue Crystal Orientation System

Single crystal orientation, quality control, and turbine blade inspection

A high-resolution Crystal Orientation System is the ideal tool to capture and analyze Laue diffraction patterns from a wide range of crystalline materials. The Photonic Science range of Laue cabinet systems combine a high-resolution CCD x-ray detector, high-brilliance x-ray beam and dedicated Laue software, delivering indexed Laue diffraction measurements to 0.1° accuracy in seconds.

Features

Plug-n-Play compact cabinet system - no customized bench or additional services required
High brilliance air-cooled x-ray solution
A range of models to suit every application, from small crystals to extended cabinets for large industrial samples

IDEAL FOR

Mixed metal sorting
Alloy identification
Impurity detection
Stream analysis

XRF-line

X-ray fluorescence analyzer for industrial-scale elemental analysis

Rapid, non-contact elemental analysis and metal sorting. Using Silicon Drift Detectors and optional high-power x-ray sources, it identifies elements from Argon to Uranium and distinguishes alloys like stainless steel, brass, and bronze. Designed for conveyor operation with objects over 1 cm, it supports additional sensors and intuitive software for real-time monitoring and seamless process integration.

Features

Adaptable integration: Customized to fit new and existing metal sorting lines
High-speed scanning: Real-time scanning up to 100 Hz for rapid operations
Rugged efficiency: Resists contaminants and operates 24/7

IDEAL FOR

PCB research and development
Biological sample inspection
Non-Destructive Testing (NDT)
Material science

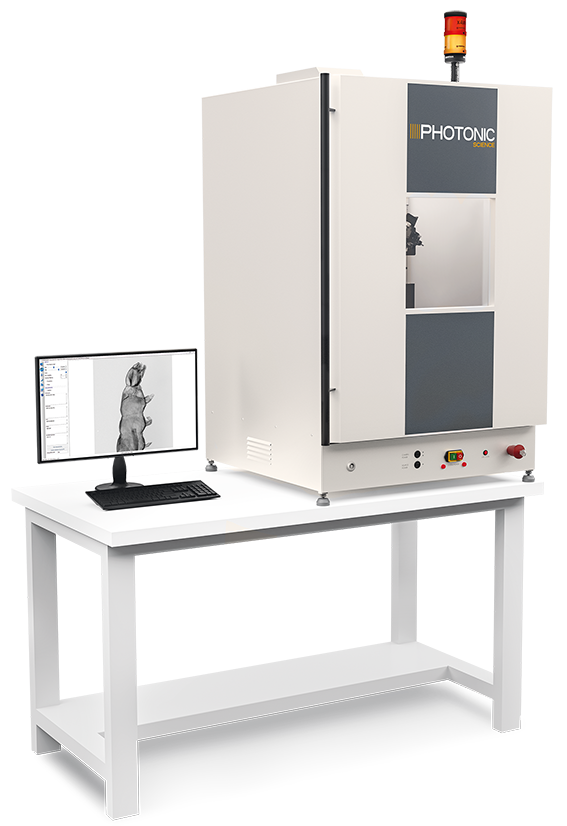

2D Micro Radiography System

A high-resolution, desktop x-ray imaging solution

The 2D Micro Radiography System delivers exceptional imaging performance with resolution down to 3 µm. Powered by Photonic Science’s low-noise, high-quality x-ray camera range, it provides best-in-class cooling, minimal image noise and outstanding clarity. Highly customizable, easy to install and maintain, it is designed for intuitive use offering a reliable solution for demanding inspection applications.

Features

Utilizes Photonic Science's market-leading x-ray sCMOS camera range
Dedicated microfocus x-ray source
Motorized solutions for large sample scanning and sample rotation

Why Choose Tibidabo Scientific Industries USA

Trusted by government agencies, labs, and OEMs globally

Supported by experts with deep imaging and system knowledge

Enhanced by technical customization, integration support, and training

Talk to an Expert

Contact Us

To discuss requirements or customization, request a quote, or schedule a product demo, fill out the contact form with your information.

A member of our team will get back to you promptly.
