Photomultiplier Tubes

What is a Photomultiplier Tube (PMT)?

PMTs are vacuum tube photodetectors that provide ultra-fast time response to optical signals from deep ultraviolet through near infrared. When using microchannel plates they can provide gains of over 10⁷ with instantaneous current output of over 1 A.

Benefits of Photomultiplier Tubes

Customizable for optimal performance in a wide variety of applications. Explore our range below and contact us to discuss your exact requirements.

Feature Highlights

Wide Range of Photocathode Options

Wide range of photocathode options, including solar-blind types matched to your wavelength of interest. Different underlayer options are also available to improve conductivity, helping maintain performance in high-speed, high-dynamic-range applications where fast response and signal quality matter.

Flexible Readout

Versions are available with multiple anodes to provide coarse spatial or spectral information.

IDEAL FOR

Inertial confinement fusion diagnostics
Ultra-fast laser diagnostics

Single Anode Photomultiplier Tubes

Ultra-fast, microchannel plate photomultiplier tube

Photek is the world leading manufacturer of MCP photomultiplier tubes for analysis of ultra-fast optical phenomena. Our photomultipliers are the fastest in the world with pulse rise times to 60 ps and pulse FWHM to 100 ps.

Features

Single photon Transit Time Spread to < 20 ps
Active diameters of 10 mm, 25 mm and 40 mm
Fast gating to < 3 ns

IDEAL FOR

Ring Imaging Cherenkov (RICH/DIRC)
Time-of-Flight positron emission tomography

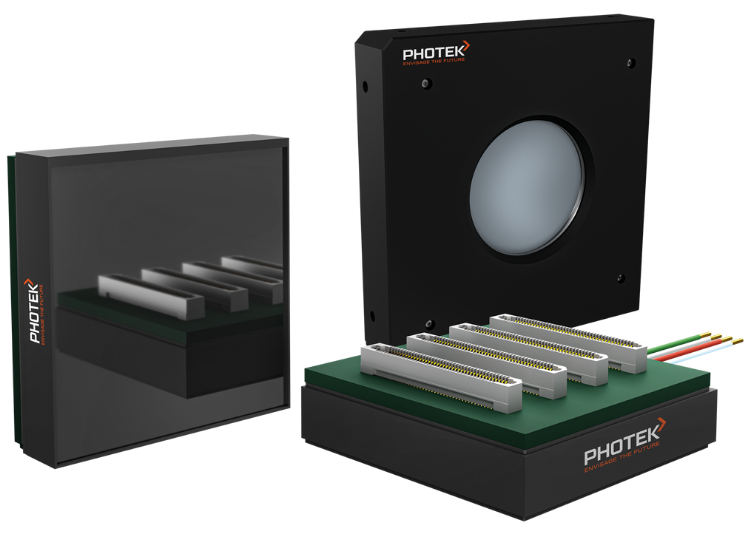

Multi-Anode Photomultiplier Tubes

Ultra-fast, spatially segmented photomultiplier tube

The Photek family of Multi-Anode Photomultipler Tubes (MAPMT) utilize Microchannel Plate (MCP) electron multipliers to provide the world’s fastest MAPMTs, with individual pulse risetimes to 175 ps and Transit Time Spread (TTS) to 30 ps rms. There are multiple configurations to choose from including a tileable version.

Features

Highest anode density of any PMT
Single photon counting with timing to < 30 ps rms
Immunity to magnetic fields

IDEAL FOR

Analysis of fast optical pulses including those found in plasma diagnostics
Particle and nuclear physics

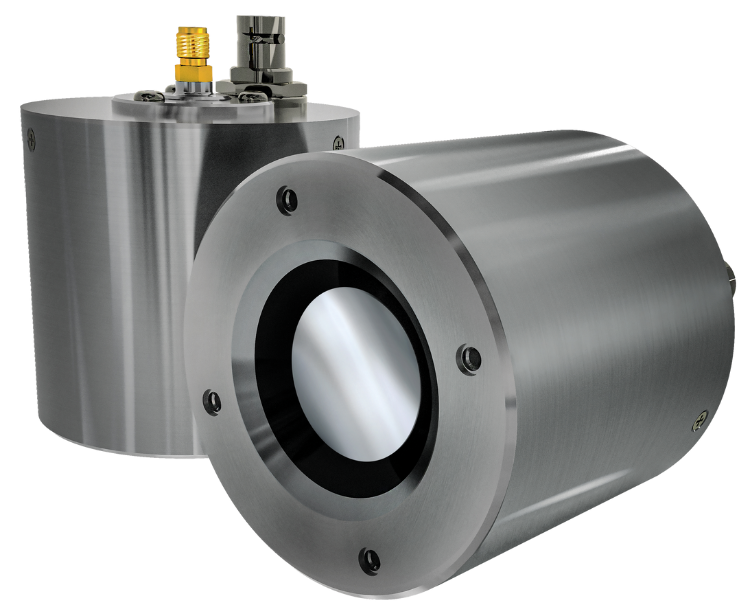

Photodiodes

Detection of ultra-fast phenomena with wide dynamic range

A Photodiode is a device for detecting ultra-fast optical events. It generates an electrical output when illuminated by light and has no internal gain but can work over a large dynamic range.

Features

Optimized anode assembly provides ultra fast response down to 50 ps risetime
Large dynamic range
Active diameters of 10 mm, 25 mm and 40 mm

Why Choose Tibidabo Scientific Industries USA

Trusted by government agencies, labs, and OEMs globally

Supported by experts with deep imaging and system knowledge

Enhanced by technical customization, integration support, and training

Talk to an Expert

Contact Us

To discuss requirements or customization, request a quote, or schedule a product demo, fill out the contact form with your information.

A member of our team will get back to you promptly.
