Vacuum Cameras

What is a Vacuum Camera?

Vacuum cameras are designed to fill imaging needs in high-vacuum environments avoiding atmospheric interference.

Benefits of Vacuum Cameras

With spectral coverage extending from the Hard X-ray to EUV and VUV, our high quantum efficiency cameras are optimized to capture every detail. Explore our range below and contact us to discuss your exact requirements.

Feature Highlight

Optimized for Time or Spatial Resolution

Whether your application demands nanosecond-scale temporal resolution or high-resolution imaging, we have a solution. The MCP Camera provides ultra-fast gating for time-resolved experiments, while CHARLIE, ALEXs, ALEXi, and CAVACam deliver outstanding spatial resolution, sensitivity, and image quality.

IDEAL FOR

X-ray scattering and spectroscopy
EUV lithography
High harmonic generation detection

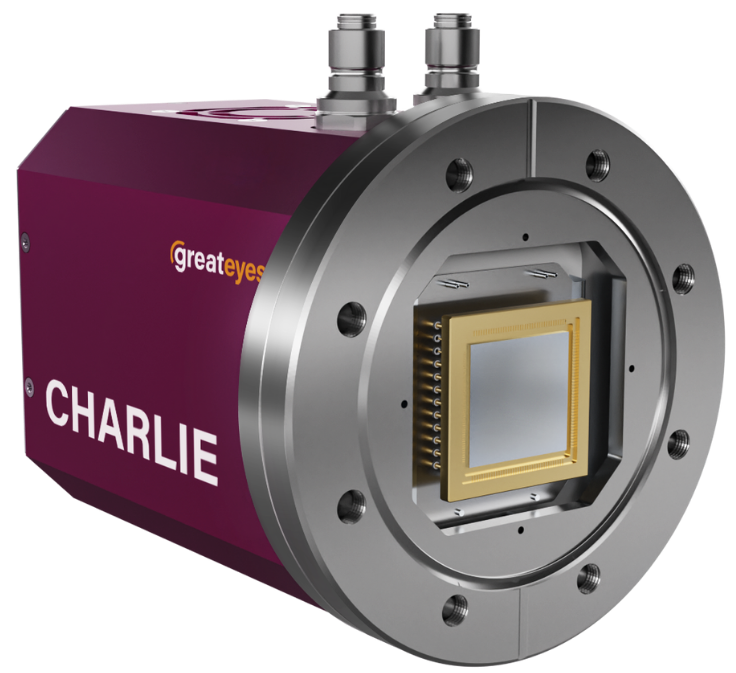

CHARLIE

High-sensitivity ultra-high vacuum compatible sCMOS camera

With ultra-low noise electronics, CHARLIE is designed to bridge the gap between the capabilities of CCD cameras to demanding, high-speed processes.

Features

99% QE - Single photon sensitivity
16 bit high dynamic range mode
Frame rates of up to 48 fps

IDEAL FOR

Time resolved EUV and soft x-ray imaging and spectroscopy

MCP Imaging Camera – SXR/EUV

Imaging system for Soft X-rays / EUV in vacuum

The MCP Imaging Camera consists of an open-faced MCP detector coupled to a high-performance camera for imaging of extreme ultraviolet and x-rays in vacuum. The system includes all associated electronics, including high-voltage power supply and MCP-gating module for a complete solution.

Features

Range of active areas including 25mm, 40mm and 75mm
Custom MCP coatings to enhance quantum efficiency
Fast detector gating down to 10 ns

IDEAL FOR

RIXS experiments
Soft x-ray synchrotron studies
High-resolution materials research

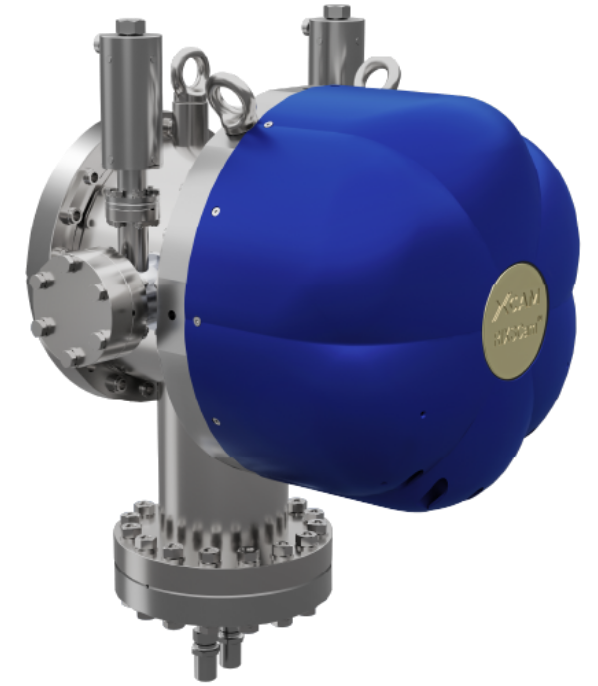

RIXSCam

Multi-Detector Photon-Counting Camera for RIXS

RIXSCam is a photon-counting camera designed for Resonant Inelastic X-ray Scattering (RIXS). It delivers exceptional spatial and energy resolution with single-photon sensitivity, supporting advanced synchrotron and soft x-ray research in ultra-high-vacuum and cryogenic environments.

Features

<5 µm spatial resolution
Single-photon detection with sub-electron read noise
Multi-detector, modular design for high-throughput and beamline customization

IDEAL FOR

RIXS studies
Soft x-ray beamlines
Precision x-ray spectroscopy research
Condensed matter physics

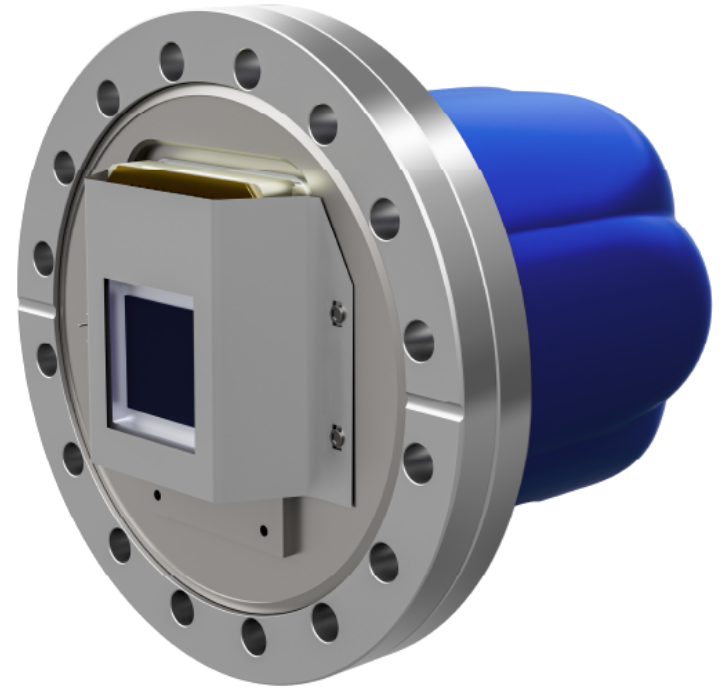

RIXSCam Mini

Single-Detector Photon-Counting Camera for RIXS

RIXSCam Mini is a compact, single-detector photon-counting camera designed for high-resolution RIXS experiments. It provides micron-level spatial accuracy, single-photon sensitivity, and ultra-low-noise performance for soft x-ray synchrotron and advanced spectroscopy applications.

Features

<5 µm spatial resolution.
Single-photon detection with sub-electron read noise
Back-illuminated EMCCD detector with Peltier cooling

IDEAL FOR

VUV
EUV
X-ray spectroscopy

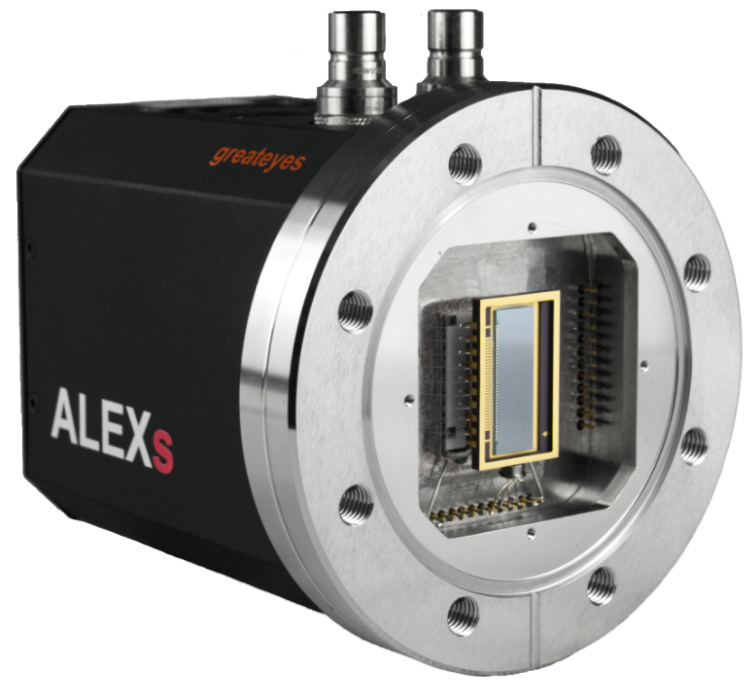

ALEXs

Ultra-deep cooled vacuum mounted CCD camera for spectroscopy

With up to 16.8 Megapixel resolution, ALEXs is optimized for high-resolution spectroscopy applications in up to ultra-high vacuum environments. The highly customizable ALEXs can be easily adapted to existing systems, with customization options in sensor geometry and placement.

Features

18-bit dynamic range
Multiple readout nodes and frequencies
2D on-chip pixel binning

IDEAL FOR

X-ray imaging and diffraction
EUV lithography

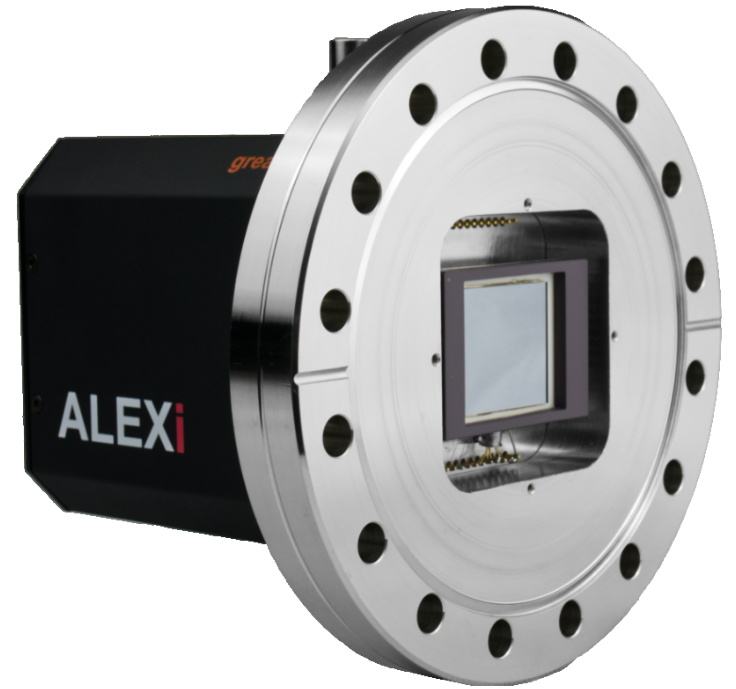

ALEXi

Ultra-deep cooled vacuum mounted CCD camera for imaging

With up to 16.8 Megapixel resolution, ALEXi allows for high resolution imaging in up to ultra-high vacuum applications. The highly customizable ALEXi can be easily adapted to existing systems, with customization options in sensor geometry and placement.

Features

18-bit dynamic range
Multiple readout nodes and frequencies
2D on-chip pixel binning

IDEAL FOR

Synchrotron experiments
Semiconductor manufacturing
Aerospace component testing
Ultra-clean vacuum research

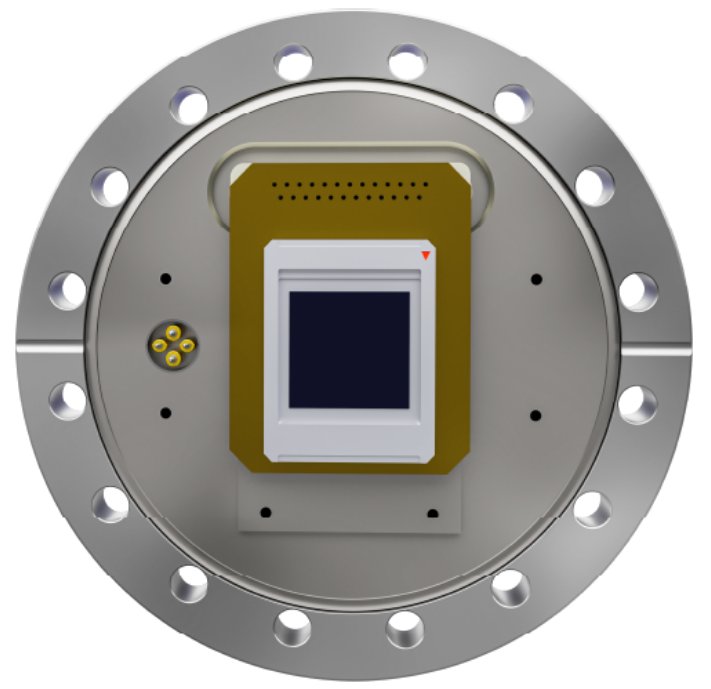

CAVACam

Customizable Ultra-Clean Vacuum Camera

The CAVACam (CAmera for VAccuum Application) is a vacuum-compatible, modular imaging system designed for ultra-clean (UHV, XHV, UCV) environments. It delivers high-quality, low-noise images for scientific, industrial, and research applications where contamination control and precise imaging are critical.

Features

Constructed to ultra-clean vacuum standards
Supports multiple detector types and camera heads
Modular and upgradable design allows detector swaps, cryogenic cooling, and system customization.

Why Choose Tibidabo Scientific Industries USA

Trusted by government agencies, labs, and OEMs globally

Supported by experts with deep imaging and system knowledge

Enhanced by technical customization, integration support, and training

Talk to an Expert

Contact Us

To discuss requirements or customization, request a quote, or schedule a product demo, fill out the contact form with your information.

A member of our team will get back to you promptly.
